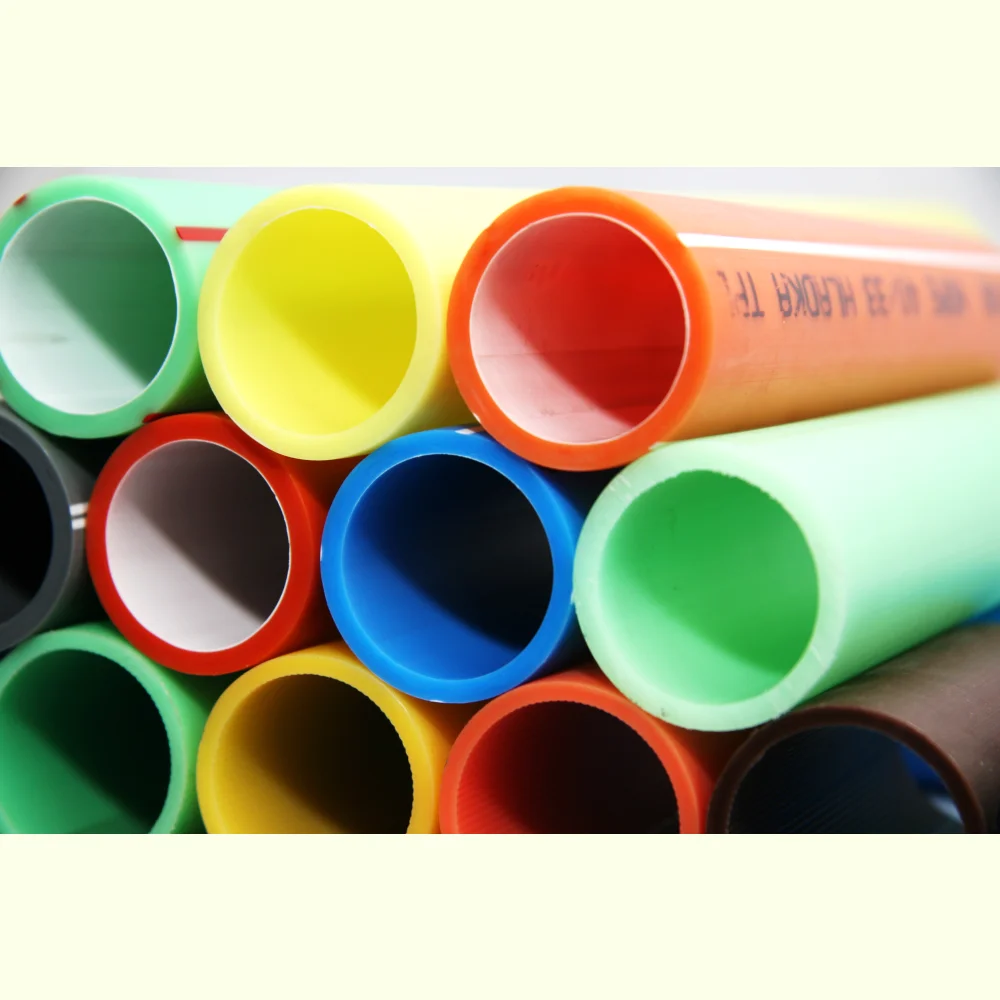

HDPE PLB Duct Pipe: Elegant PLB Duct Pipe is extruded from selected high-quality virgin HDPE material and co-extruded with solid Silicon permanent lubricant that is distributed uniformly along the entire inner surface of the duct. This provides a low-friction smooth surface for easy cable drawing or blowing, reducing the Internal Co-efficient of Friction (ICF) between the fiber optic cable and the pipe.
The outer HDPE shell makes the pipe tough and durable, enabling it to withstand pressure during HSAB of cables while retaining roundness under soil pressure and traffic loads. Our pipes conform to BSNL specifications and contain co-extruded 4 equi-spaced continuous longitudinal strips of minimum 3mm width.
| Specification | Details |
|---|---|
| Brand | Elegant Polymers |
| Country of Origin | India |
| Material | PE (HDPE) |
| Sizes Available | 12 to 450 mm |
| Pressure Rating | 2.5 to 20 kgf/cm2 |
| Standards | IS 4984:2016, IS 14333:1996 |
| Jointing Method | Socket Joint |
| Length / Coil Size | 6/12/Coil Meter |
| Life Span | 25 yrs |
| Packing Details | Coils and straight lengths as per requirement |
| Certifications | IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427 |
| Shape | Round |
| Warranty | 5 yrs |
| Minimum Order Quantity | 500 Meter |
| Price | ₹10.00/Meter (Negotiable) |
| Production Capacity | 800000 Meter Per Year |
| Delivery Time | 1 Week |
| Port of Dispatch | Mundra Port |
| Payment Terms | Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Letter of Credit at Sight |
| Sample Policy | Free samples available with shipping and taxes paid by the buyer |
| Export Markets | Asia, Australia, Central America, North America, Western Europe, Middle East, Africa, South America, Eastern Europe |
